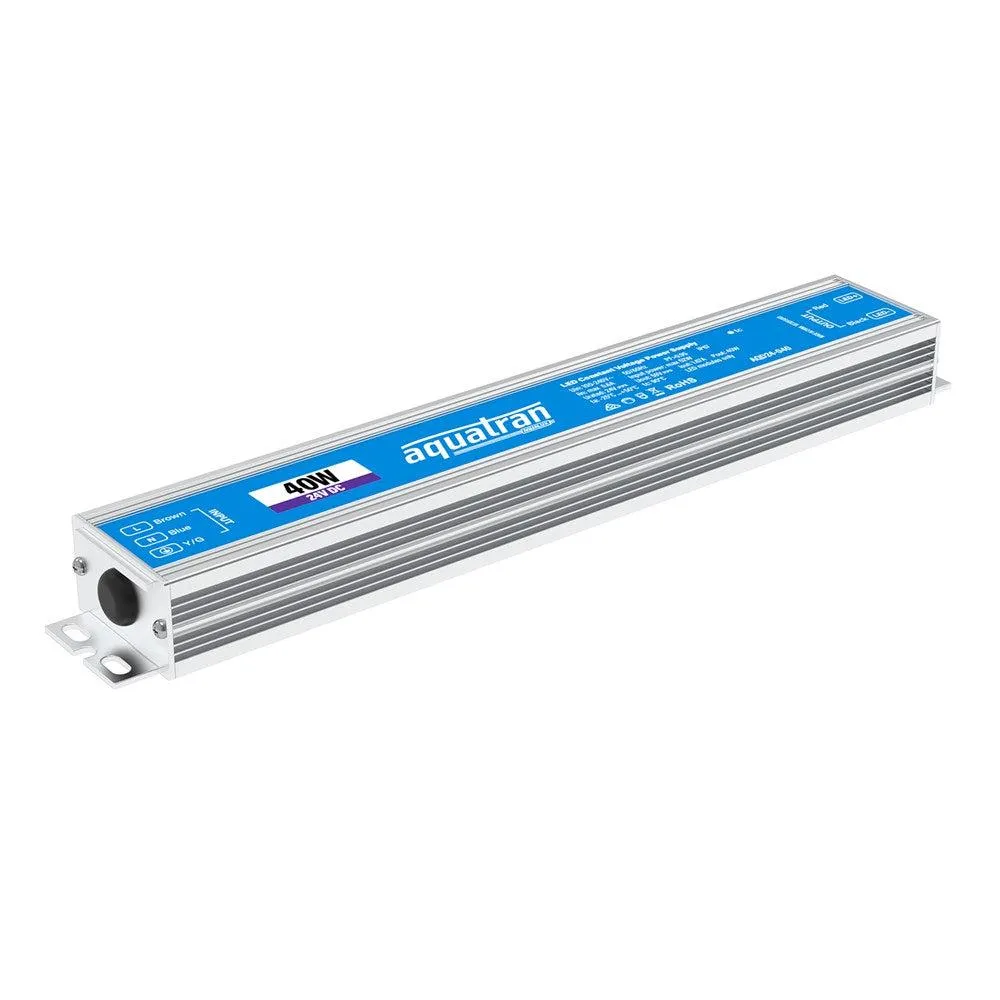

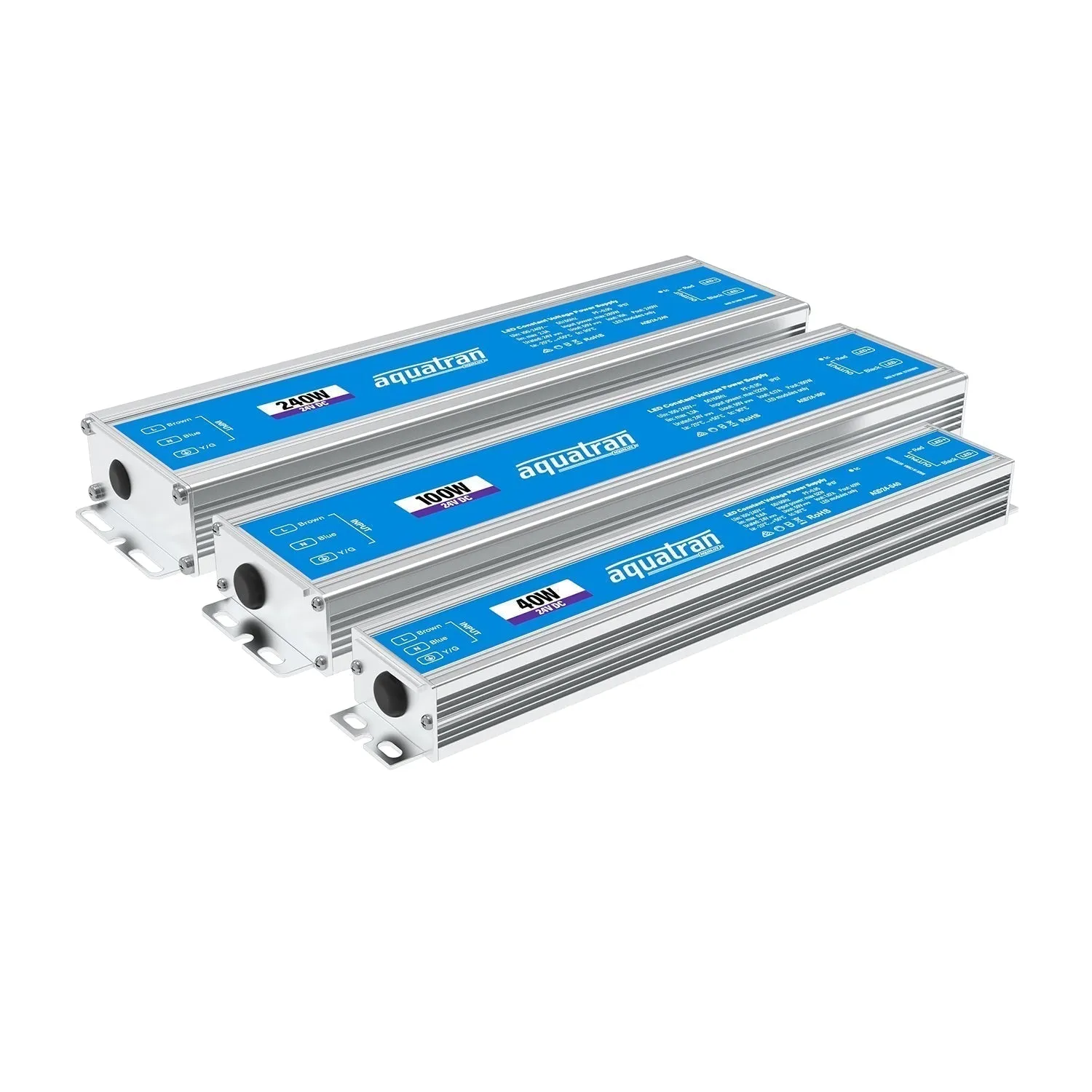

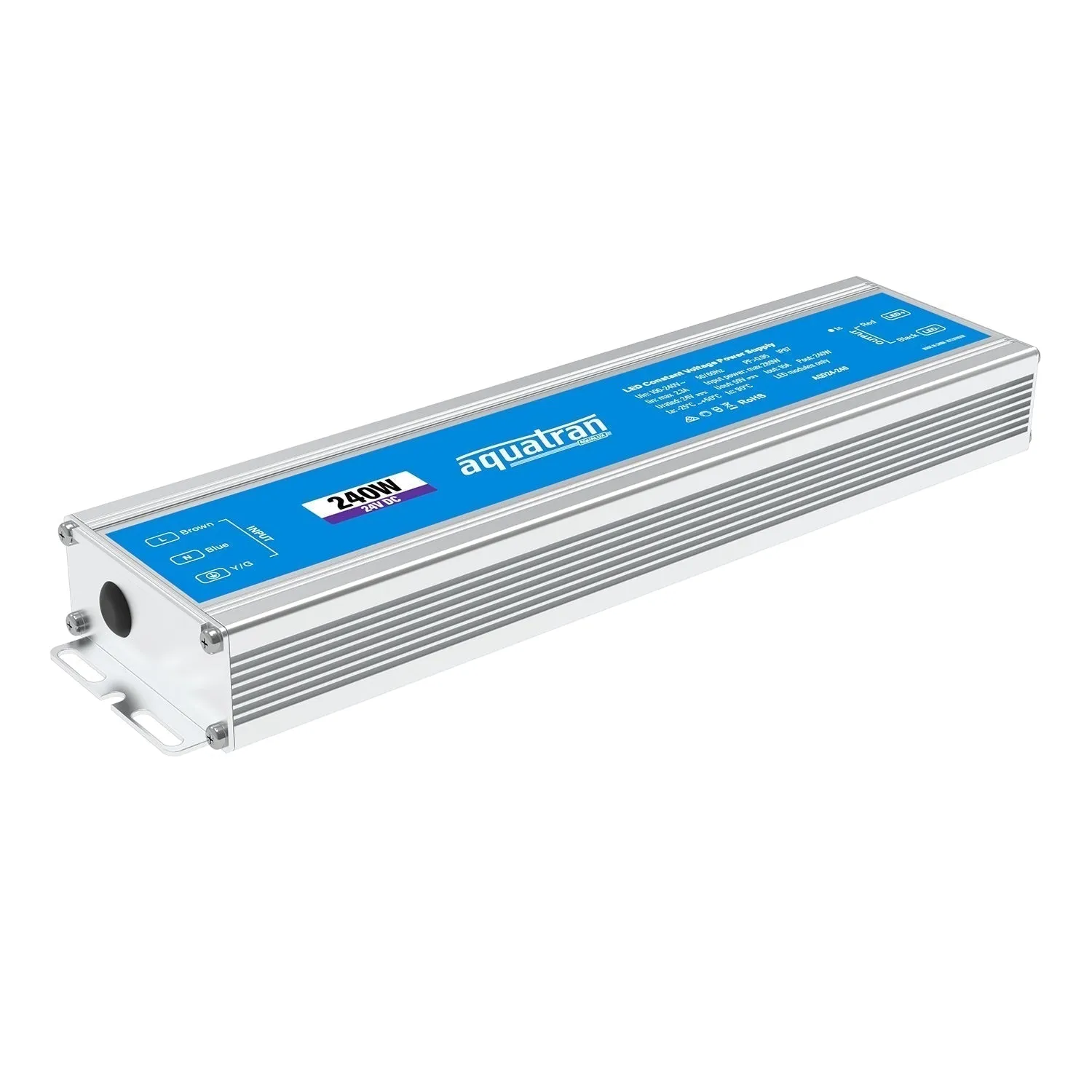

The AQD range of IP67 24V DC power supplies is suitable for a wide range of constant-voltage 24V LED systems, including the Aqualux Lumena System and AQS Strip lighting.
Features:
- Wide input voltage with active PFC, rated for full load output
- Ultra-thin design, save on installation space
- Optimised for a harsh working environment
- Isolated design, safe and reliable
- Protections: Overload, Over temperature, Short circuit, Surge.
- Full RCM Compliance
- Full load efficiency up to 87% (AQD24-040), 88% (AQD24-100), 93.5%(AQD24-240)
- IP67 Rated
- 5 year warranty
Specifications:
- Material: Metal
- Input Voltage: 110-240v AC / 50-60Hz
- Output Voltage: 24v DC
- Input Cable: 1.2m Flex & Plug
- Output Cable: 500mm
- IP Rating: IP67
- Warranty: 5 Years

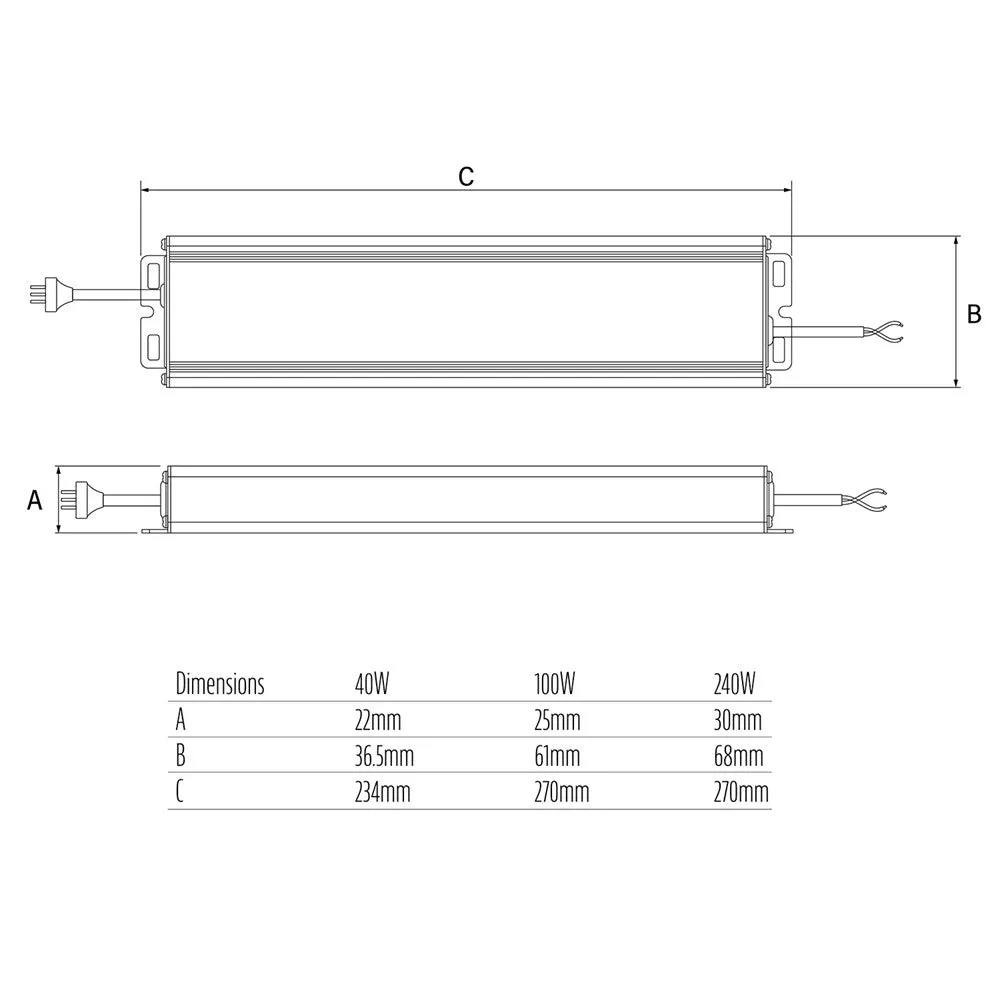

Dimensions:
| Wattage | Length | Width | Height |
| 40w | 234mm | 36.5mm | 22mm |
| 100w | 270mm | 61mm | 25mm |
| 240w | 270mm | 68mm | 30mm |
